Designed and fabricated in the USA for cryogenic liquid-transfer applications involving nitrogen, oxygen, and argon.
HOSE MATERIAL SPECIFICATIONS
Nominal hose inside diameter: 1/2 in.
Hose outside diameter: 0.810 in.
Hose weight: 0.21 lb/ft
Minimum live length for vibration: 4.500 in.
Minimum static bend radius: 1.125 in.
Minimum dynamic bend radius: 5.500 in.
Maximum working pressure: 1,040 psig
Maximum test pressure: 1,560 psig
Nominal burst pressure: 4,160 psig
Manufacturer-stated vacuum capability: Full vacuum
Manufacturer-stated hose-material temperature rating: Cryogenic to 1,250°F
CONSTRUCTION
The hose material consists of a Type 321 stainless steel helical hose with a Series 300 stainless steel outer braid.
ASSEMBLY AND TESTING
The assembly is TIG welded by an AWS-certified welders and argon-purged during welding to support internal weld integrity. Each finished hose is leak tested, flushed, and cleaned to remove fabrication debris and contaminants before shipment.
IMPORTANT FITTING NOTICE

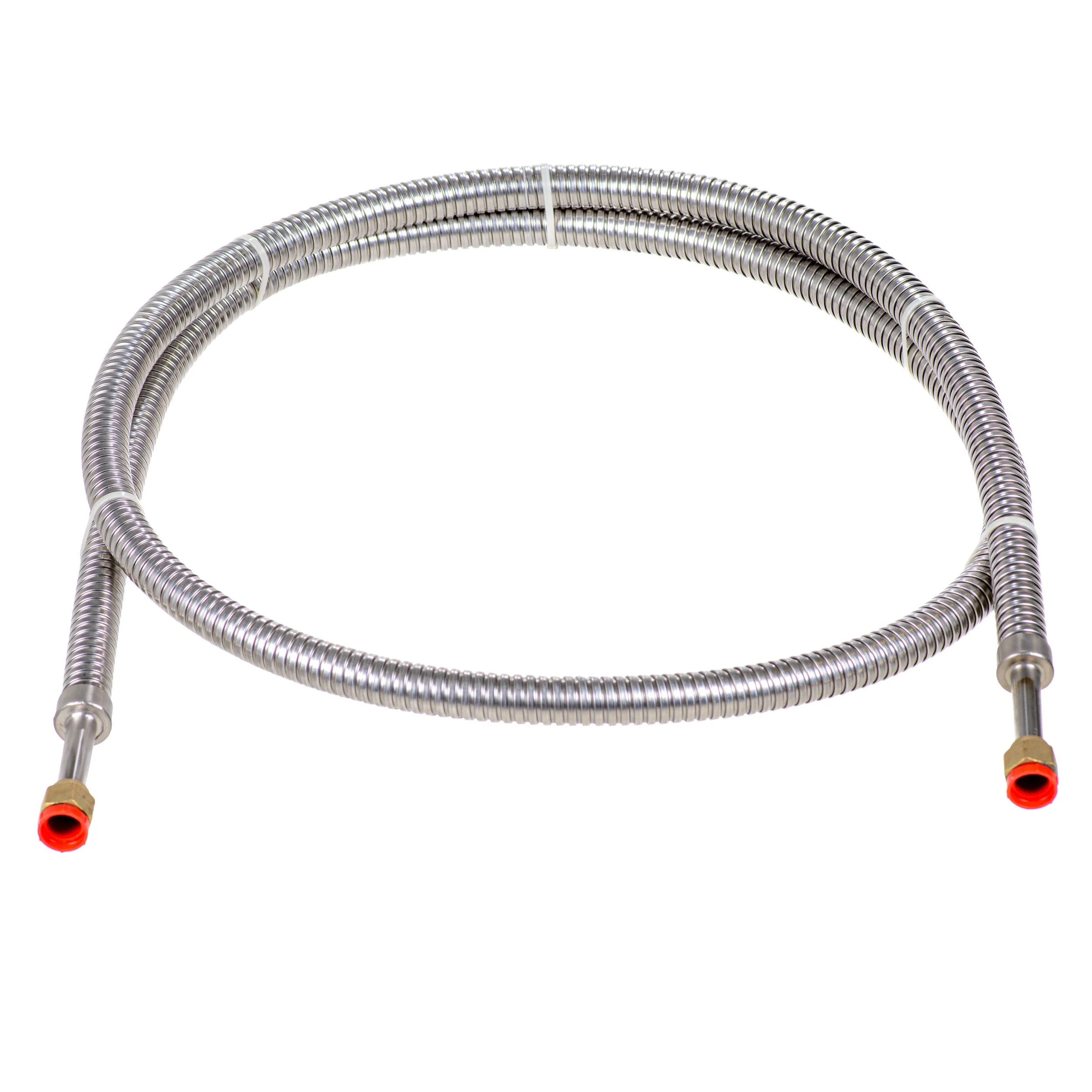

This hose is supplied with 5/8-in. female flare nuts. Before purchasing, verify that the equipment, tank, regulator, valve, or connection point has a compatible mating connection.
